模塊介紹

重要 注意 提醒

Coding Style wiki

---

基本說明

網路模塊，網路事件分為 OnOpen, OnBinary, OnMessage, OnError, OnClose，也實現多節點 (NetNode)，另外可以設置心跳檢測回調、超時處理回調、斷線重連回調，並且也能實現 INetTips 網路訊息接口的實作。

---

應用說明

• NetManager (網路節點管理器)
• NetNode (網路節點)
• INetProvider (網路供應者)
  • TcpNetProvider (TCP)
  • KcpNetProvider (KCP)
  • WebSocketNetProvider (WebSocket)
• NetOption (連線配置)
  • TcpNetOption
  • KcpNetOption
  • WebSocketNetOption
• INetTips (網路狀態提示接口)

注意 已提供以下 NetProvider (可自行擴展)。

• TCP (Telepathy TCP)
  • 注意：Telepathy 框架已處理分黏包問題，會強制在 Packet 前面加入 4 bytes 來表示封包長度。
• KCP (kcp2k)
• WebSocket (UnityWebSocket)

示例使用 ioGame 作為服務端 (高效、方便快速切換連接方式)，客戶端使用 NetFrame - TcpNetProvider, WebSocketNetProvider 作為連線：

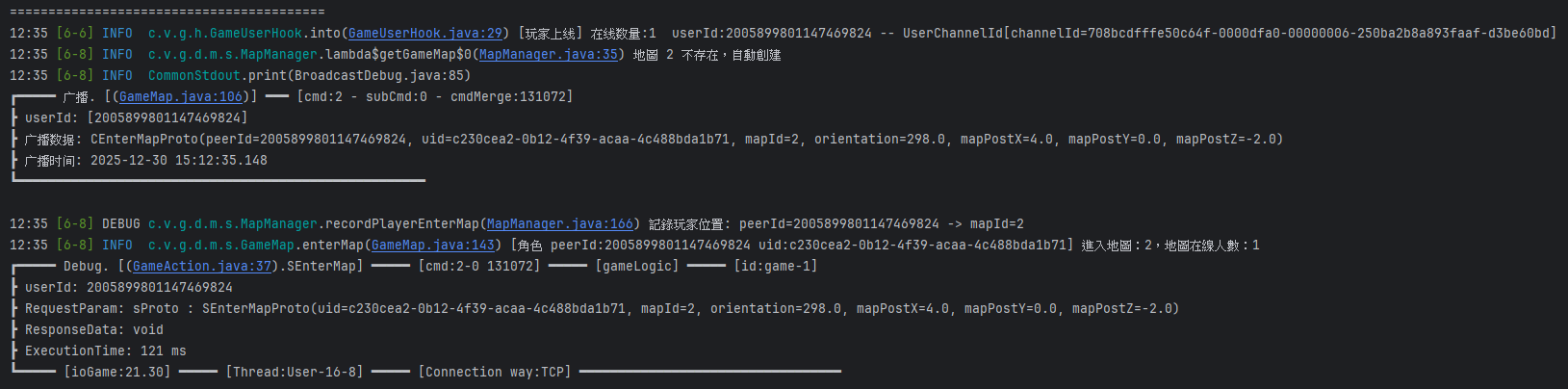

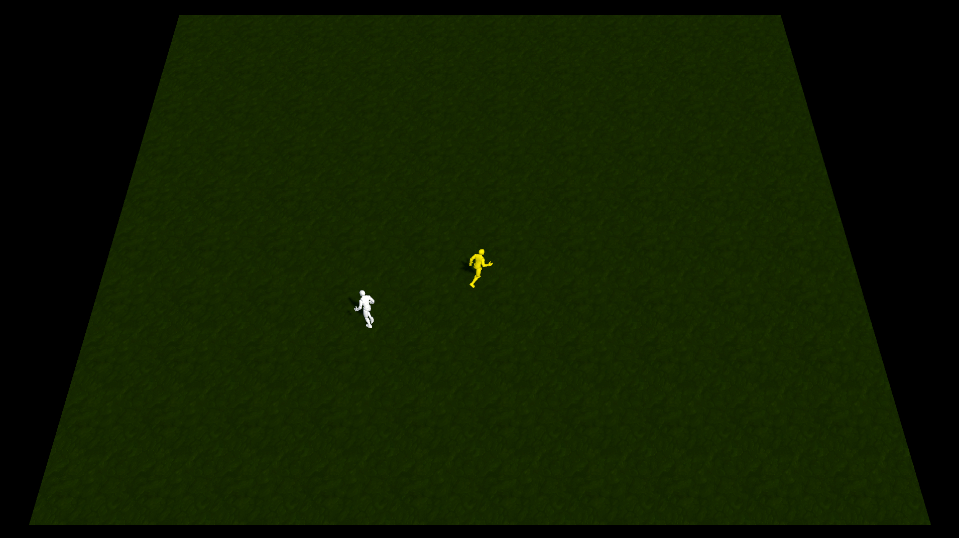

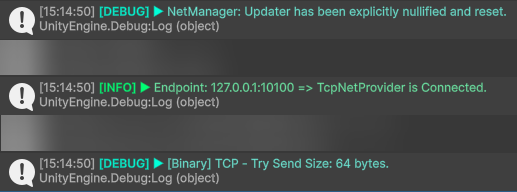

ioGame Server (TCP)	NetFrame - TcpNetProvider Client

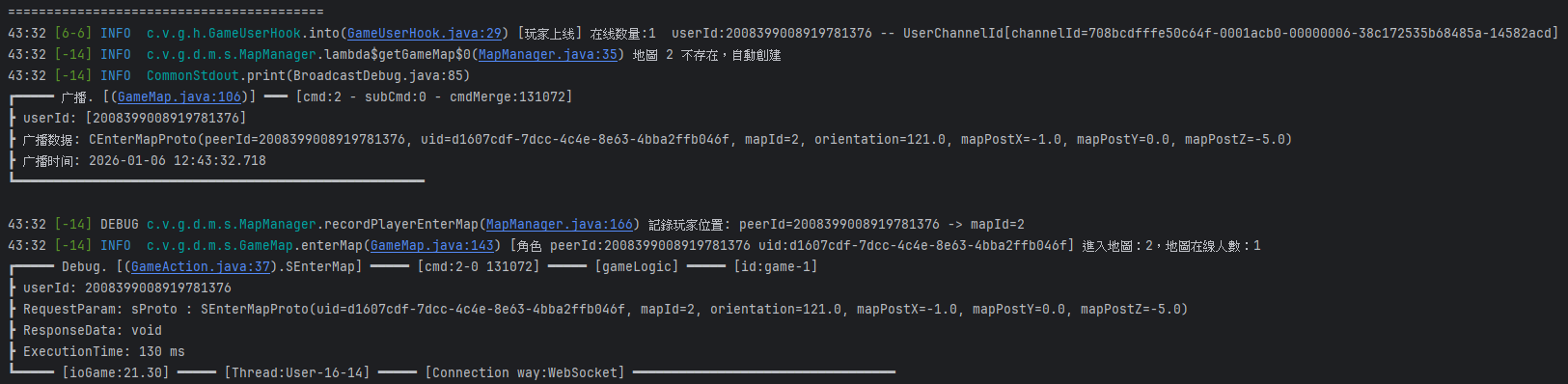

ioGame Server (WebSocket)	NetFrame - WebSocketNetProvider Client

簡單使用

自行定義 NetNode ID

public enum NNID
{
    WebSocket = 0,
    TCP = 1,
    KCP = 2
}

開始初始 NetNode

/// <summary>
/// Init WebSocket net node
/// </summary>
public static void InitWebSocketNetNode()
{
    var netTips = new NetTipsExample();
    NetNode netNode = null;

    #region WebSocket NetNode Example
    netNode = new NetNode(new WebSocketNetProvider(), netTips);
    // Set data receive callback
    netNode.SetResponseBinaryHandler((recvData) =>
    {
        Debug.Log("Recv Binary Data (WebSocket)");
    });
    // Set connecting callback (Before connection)
    netNode.SetConnectingHandler(() =>
    {
        /**
         * If there is first verification can do somethings in here
         */

        Debug.Log("Process Connecting Event (WebSocket)");
    });
    // Set connected callback (After connection)
    netNode.SetConnectedHandler(() =>
    {
        /**
         * Connection established successfully
         */

        Debug.Log("Process Connected Event (WebSocket)");
    });
    // Set heart beat callback
    netNode.SetHeartBeatTickerTime(10f);
    netNode.SetHeartBeatAction(() =>
    {
        /* Process Heart Beat */
    });
    // Set out receive callback
    netNode.SetOutReceiveTickerTime(60f);
    netNode.SetOutReceiveAction(() =>
    {
        /* Process Out Of Receive */
    });
    // Set reconnect callback
    netNode.SetReconnectTickerTime(5f);
    netNode.SetReconnectAction(() =>
    {
        /* Process Reconnect */
    });

    // Add net node (register)
    NetFrames.AddNetNode(netNode, (int)NNID.WebSocket);
    #endregion
}

/// <summary>
/// Init TCP net node
/// </summary>
public static void InitTCPNetNode()
{
    var netTips = new NetTipsExample();
    NetNode netNode = null;

    #region TCP NetNode Example
    netNode = new NetNode(new TcpNetProvider(), netTips);
    // Set data receive callback
    netNode.SetResponseBinaryHandler((recvData) =>
    {
        Debug.Log("Recv Binary Data (TCP)");
    });
    // Set connecting callback (Before connection)
    netNode.SetConnectingHandler(() =>
    {
        /**
         * If there is first verification can do somethings in here
         */

        Debug.Log("Process Connecting Event (TCP)");
    });
    // Set connected callback (After connection)
    netNode.SetConnectedHandler(() =>
    {
        /**
         * Connection established successfully
         */

        Debug.Log("Process Connected Event (TCP)");
    });
    // Set heart beat callback
    netNode.SetHeartBeatTickerTime(10f);
    netNode.SetHeartBeatAction(() =>
    {
        /* Process Heart Beat */
    });
    // Set out receive callback
    netNode.SetOutReceiveTickerTime(60f);
    netNode.SetOutReceiveAction(() =>
    {
        /* Process Out Of Receive */
    });
    // Set reconnect callback
    netNode.SetReconnectTickerTime(5f);
    netNode.SetReconnectAction(() =>
    {
        /* Process Reconnect */
    });

    // Add net node (register)
    NetFrames.AddNetNode(netNode, (int)NNID.TCP);
    #endregion
}

/// <summary>
/// Init KCP net node
/// </summary>
public static void InitKCPNetNode()
{
    var netTips = new NetTipsExample();
    NetNode netNode = null;

    #region KCP NetNode Example
    netNode = new NetNode(new KcpNetProvider(), netTips);
    // Set data receive callback
    netNode.SetResponseBinaryHandler((recvData) =>
    {
        Debug.Log("Recv Binary Data (KCP)");
    });
    // Set connecting callback (Before connection)
    netNode.SetConnectingHandler(() =>
    {
        /**
         * If there is first verification can do somethings in here
         */

        Debug.Log("Process Connecting Event (KCP)");
    });
    // Set connected callback (After connection)
    netNode.SetConnectedHandler(() =>
    {
        /**
         * Connection established successfully
         */

        Debug.Log("Process Connected Event (KCP)");
    });
    // Set heart beat callback
    netNode.SetHeartBeatTickerTime(10f);
    netNode.SetHeartBeatAction(() =>
    {
        /* Process Heart Beat */
    });
    // Set out receive callback
    netNode.SetOutReceiveTickerTime(60f);
    netNode.SetOutReceiveAction(() =>
    {
        /* Process Out Of Receive */
    });
    // Set reconnect callback
    netNode.SetReconnectTickerTime(5f);
    netNode.SetReconnectAction(() =>
    {
        /* Process Reconnect */
    });

    // Add net node (register)
    NetFrames.AddNetNode(netNode, (int)NNID.KCP);
    #endregion
}

創建 NetNode 連線

/// <summary>
/// Create connection
/// </summary>
/// <param name="netOption"></param>
/// <param name="nnid"></param>
public static void OpenConnection(NetOption netOption, int nnid = 0)
{
    // Init net node if not exist
    switch (nnid)
    {
        case (int)NNID.WebSocket:
            if (NetFrames.GetNetNode((int)NNID.WebSocket) == null)
                InitWebSocketNetNode();
            break;
        case (int)NNID.TCP:
            if (NetFrames.GetNetNode((int)NNID.TCP) == null)
                InitTCPNetNode();
            break;
        case (int)NNID.KCP:
            if (NetFrames.GetNetNode((int)NNID.KCP) == null)
                InitKCPNetNode();
            break;
    }
    // Connect to server
    NetFrames.Connect(netOption, nnid);
}

關閉 NetNode 連線

/// <summary>
/// Close connection
/// </summary>
/// <param name="nnid"></param>
public static void CloseConnection(int nnid = 0)
{
    // Close connection and remove net node
    NetFrames.Close(nnid, true);
}

檢查 NetNode 是否已連線

/// <summary>
/// Return connection status
/// </summary>
/// <param name="nnid"></param>
/// <returns></returns>
public static bool IsConnected(int nnid = 0)
{
    return NetFrames.IsConnected(nnid);
}

發送 NetNode 數據

/// <summary>
/// Send binary data
/// </summary>
/// <param name="buffer"></param>
/// <param name="nnid"></param>
/// <returns></returns>
public static bool SendData(byte[] buffer, int nnid = 0)
{
    // Also you can get NetProvider to send data like:
    // NetFrames.GetNetNode((int)NNID.KCP).GetNetProvider<KcpNetProvider>().SendBinary(buffer);
    // NetFrames.GetNetNode((int)NNID.KCP).GetNetProvider<KcpNetProvider>().SendBinary(kcp2k.KcpChannel.Unreliable, buffer);

    return NetFrames.Send(buffer, nnid);
}
